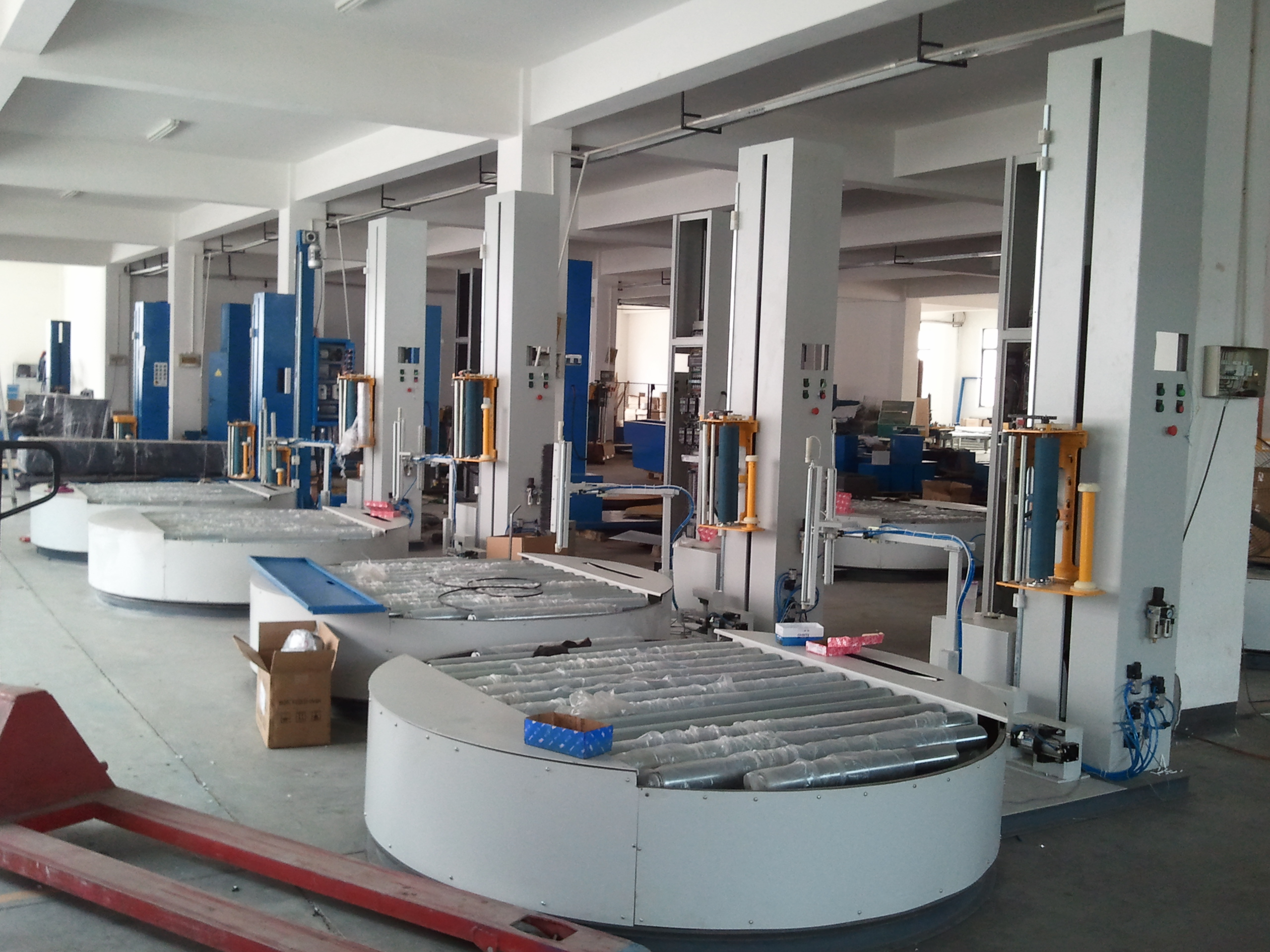

Turntable Fully Automatic Pallet Wrapping Machine
The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, et.
Product Gallery
Product Video
Technical Specifications
| Pallet Size: | （500-1300）*（500-1200）*1900 |
|---|---|
| Packing Speed: | 40-60 Pallet Per Hour |
| Conveyor Height: | 500Mm（350-700Mm) |
| Cantilever Speed: | 0-15Rpm |
| Film Structure: | Pre-Stretch Membrane Frame |
| Power Supply: | 2.1Kw、AC220V |
| Machine Size: | （L*W*H）4000*1800*3220 |
| Packaging Material: | Film |
| Machine Weight: | 1400Kg |
Description
- High efficiency and low electricity-consumption, convenient in operation.
- The wrapping type and times can be designed on customers’ requirements.
- Photoelectric sensor test pallet height automatic.
- Auto reset of turntable.
- Pre-stretch ratio: 300%.
- Programmable control and frequency converter is available.
- PLC control, manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
