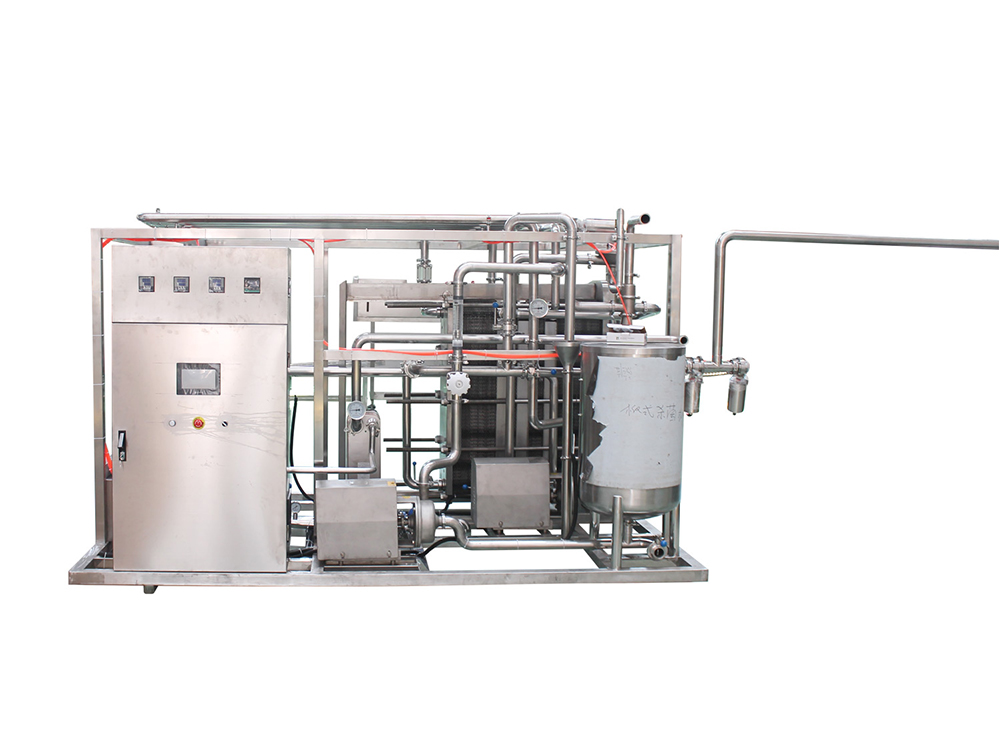

Plate Type UHT Sterilizer
The plate type sterilizer is a primary sterilization equipment designed for dairy beverages or similar liquid materials. According to the user’s different process requirements for heating, sterilization, heat preservation, and cooling of different materials, different process combinations can be designed to meet process requirements.
Product Gallery
Product Video
Technical Specifications
| Model Specification: | HE-BR0.1-NN-1/HE-BR0.1-NN-1.5/HE-BR0.25-NN-2/HE-BR0.25-NN-3/HE-BR0.25-NN-4/HE-BR0.25-NN-5 |
|---|---|
| Capacity (T/H): | 1/1.5/2/3/4/5 |
| Steam Energy Consumption (Kg/H): | 40/60/80/120/160/200 |
| Steam Pressure (Bar): | 5 |
| Electric Power (Kw): | 3.5/4.1 |
| Dimensions (L*W*H): | 1.8*1.4*1.8/1.8*1.6*2.0/2.0*1.6*2.0 |
| Weight (Kg): | 840/880/910/980/1050/1130 |
| Material Pipe Diameter (Φ): | 25/38 |
| Steam Pipe Diameter (Φ): | DN25/DN32 |
| Diameter Of Medium Pipe (Φ): | 25/38 |
Description
- Material and heating medium can be increased through non-contact exchange.
- Short sterilization time.
- The whole machine adopts food grade stainless steel material.
- This unit is composed of material balance and conveying system, plate heat exchange system, material piping system, hot water piping system, steam piping system, hot water heating system, material automatic return system, temperature automatic control and electrical control system, etc.
