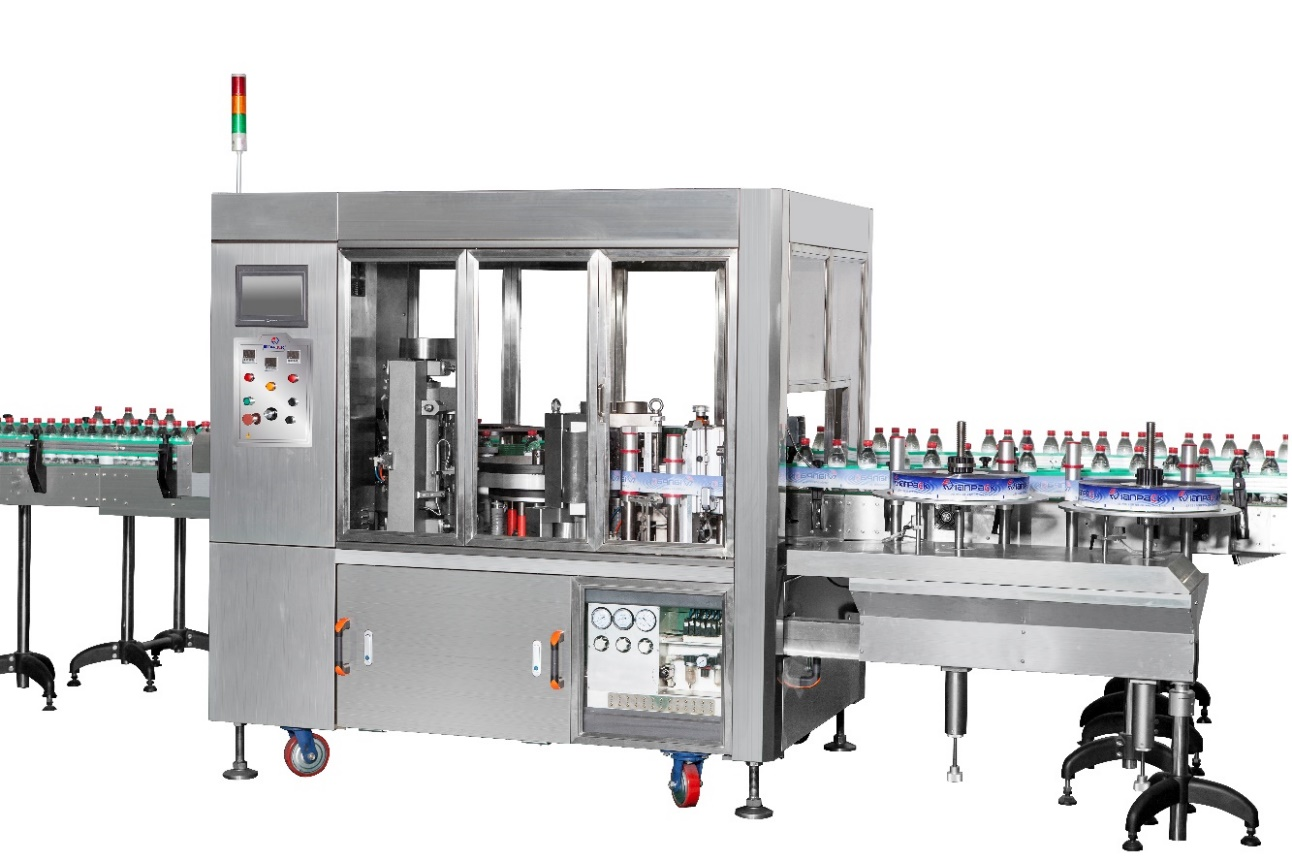

Linear Hot Glue Melt Labeling Machine
Include such mechanisms as label-providing, belt-conveying, label-cutting, wheels-attaching, vacuum-adsorbing, hot sol-conveyance.
Product Gallery
Product Video
Technical Specifications
| Model: | RFL-L100/RFL-L150/RFL-L200/RFL-L250/RFL-L300 |
|---|---|
| Labling Speed(BPH): | 6000/9000/12000/15000/18000 |
| Power: | 9/9/11/11/11Kw |
| Available Container: | Diameter 30-120Mм, Bottle Height 70-340Mм |
| Labeling Precision: | ± 0.2Mm |
| Roll Film Diameter: | Max. 500Mm With 3 Inch or 6 Inch Diameter Paper Core |
| Dimension(Mm): | 3300*1500*1680/3300*1500*1680/4000*1600*2100/4000*1600*2100/4000*1600*2100 |
Description
- PLC control system, full-automatic working.
- Main engine is controlled by three-phase converter motor, speed adjustable.
- Disc label-pasting and label-adsorbing.
- Hot sol providing machine is made in a hundred million Hertz.
- STOP installation for pasting failure.
- Adjustable label-pasting speed of main engine
