Juice bottle semi-automatic bottle blow machine
Juice bottle semi-automatic bottle blow machine is suitable for bottles for filling juice, this type of bottle will be heat-resistant.

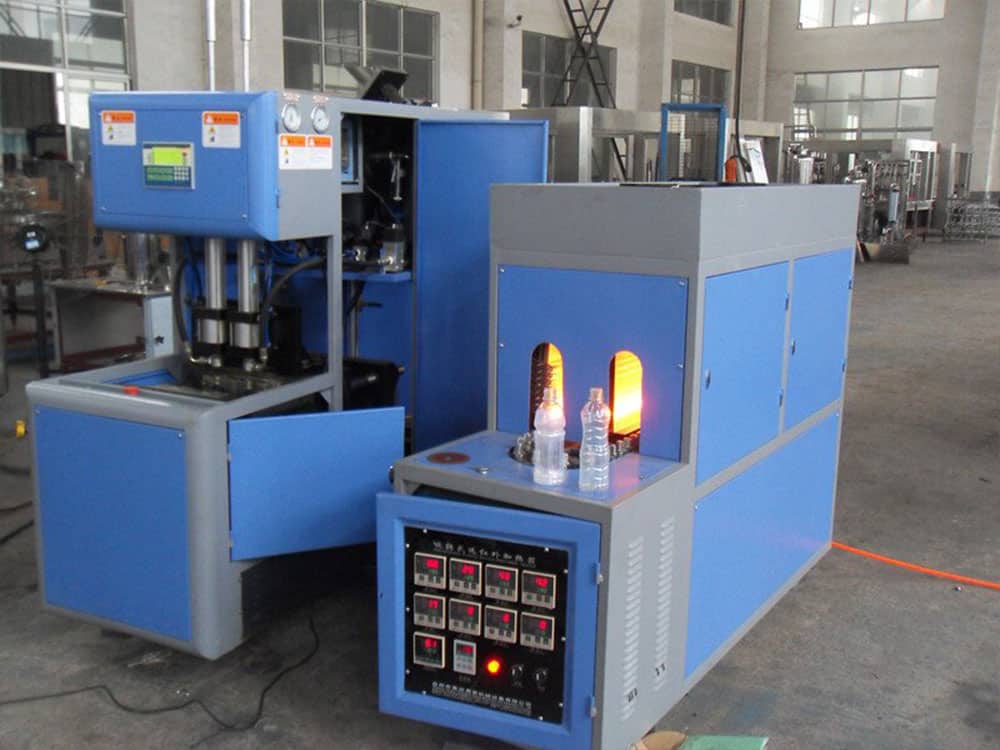

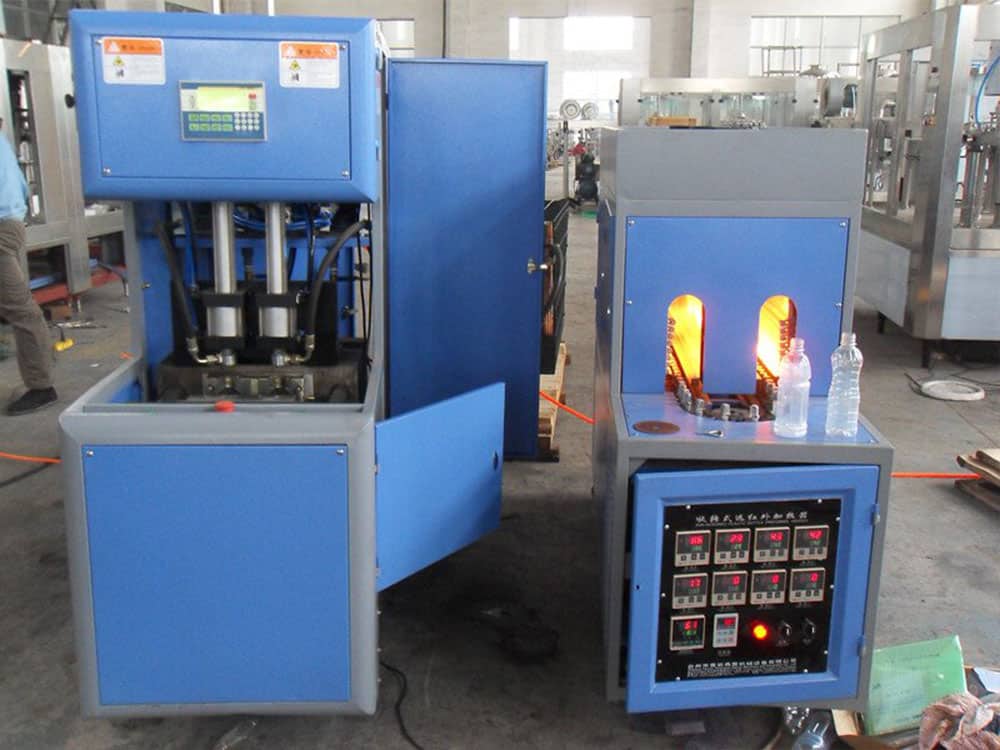

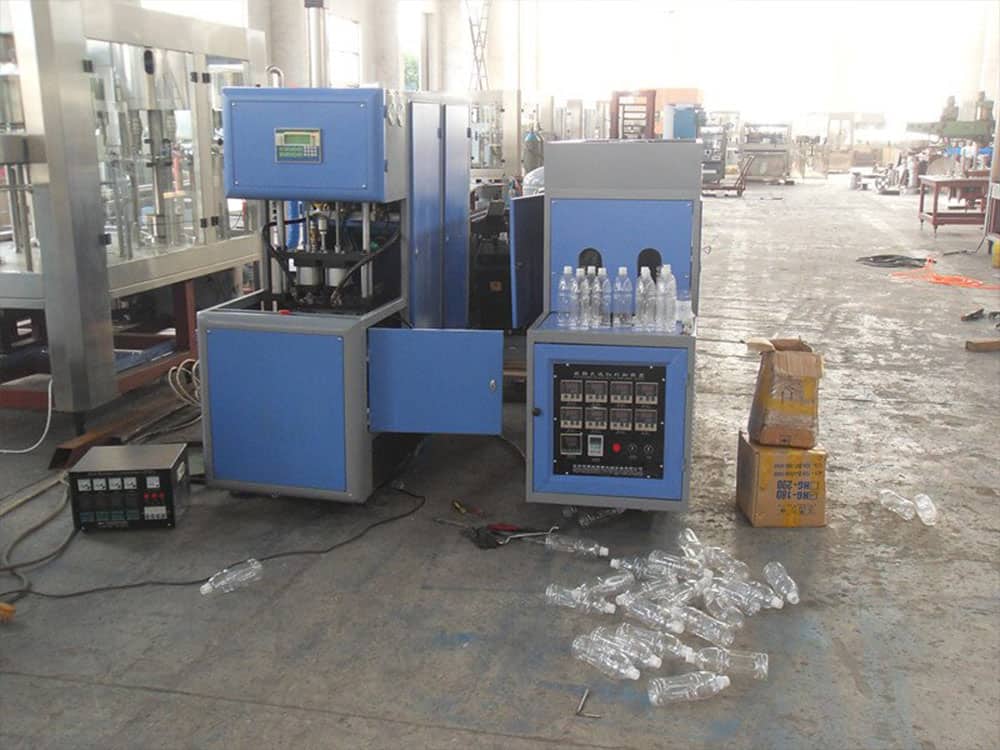

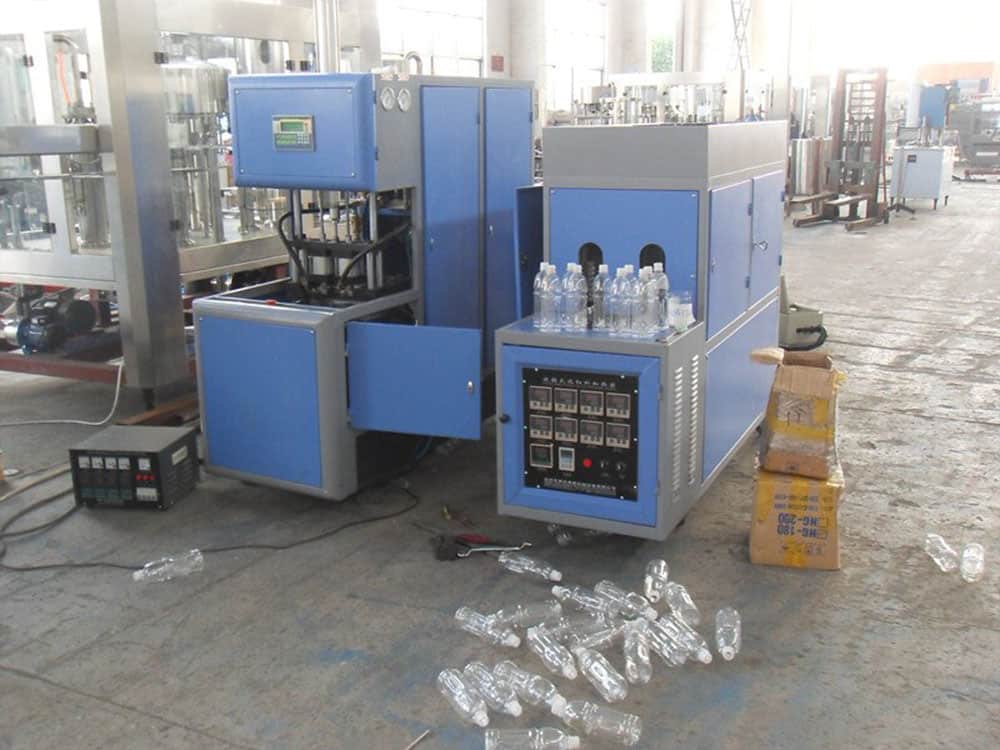

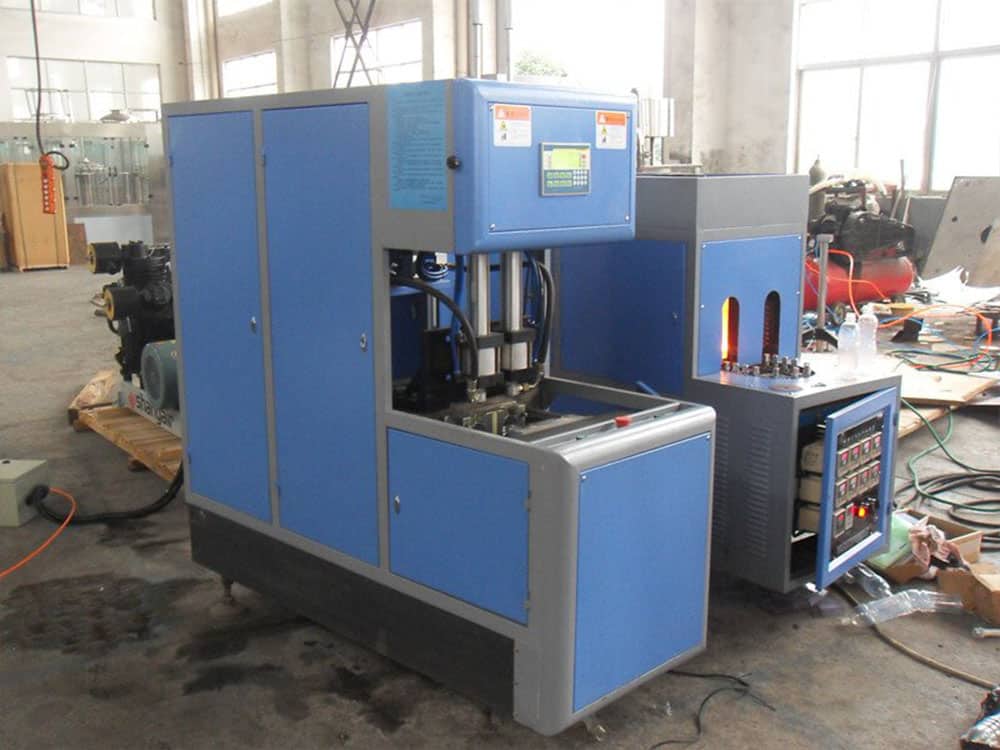

Product Gallery
Product Video
Technical Specifications
| Unit | DY-1200A | DY-1200B | ||
| TYPE A | TYPE B | |||
| Molding | Clamping force | kg | 13000 | |
| Clamping stroke | mm | 155 | ||
| Stretching stroke | mm | 370 | ||
| Bottom stroke | mm | / | ||
| Cavity pitch | mm | 130 | ||
| Number of cavity | pcs | 2 | ||
| Container | Max. container volume | Ltr | 3 | |
| Neck diameter range | mm | 10-120 | ||
| Max. container diameter | mm | 130 | ||
| Max. container height | mm | 350 | ||
| Carriage unit | pcs | 72 | 96 | |
| Theoretical output | BPH | 1200 | 2400 | |
| Electric system | Total power | kw | 17 | |
| Heating power | kw | 16 | ||
| Max. heating power | kw | 8 | ||
| Air system | Operating pressure | Kg/cm2 | 7 | |
| Low air consuming | Ltr/min | 600 | 1200 | |
| Blowing pressure | Kg/cm2 | 25 | ||
| High air consuming | Ltr/min | 800 | 1200 | |
| Air dryer | Operation pressure | Kg/cm2 | 2-4 | |
| Temperature | 10-12 | |||
| Consuming | Kcal/hr | 2000 | ||
| Flow rate | Ltr/min | 30 | ||
| Water chiller | Operation pressure | Kg/cm2 | 2-4 | |
| Temperature | 30 | |||
| Consuming | Kcal/hr | 10000 | ||
| Flow rate | Ltr/min | 130 | ||
| Machine size | Dimension | Mm | 1650*650*1700 | |
| Weight | kg | 600 | ||
| Remarks | 1, All data standard indication for 0.6L bottle; 2, The actual output depends on the perform quality and bottle shape; 3, Specifications are subject to change without notice; 4, Please provide the stable ambient temperature; |
|||
Description
Juice bottle semi-automatic bottle blow machine is suitable for bottles for filling juice, this type of bottle will be heat-resistant.
Compare with water bottle blowing machine, the juice bottle blowing machine will need extra set of mould heater. And the preform will choose heavier one than water.
