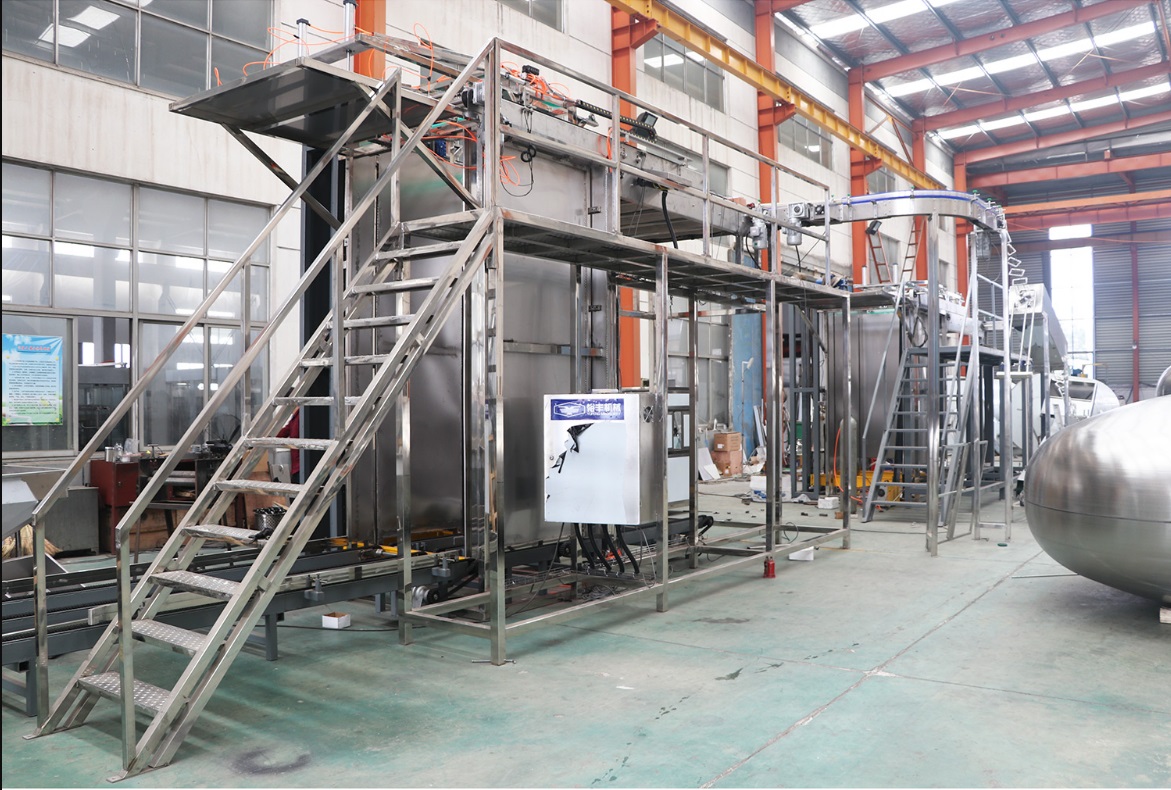

Automatic Empty Can De-Palletizer
The lifting of this machine is controlled by PLC computer to automatically control the layering and positioning, and the tank body is controlled by the electric eye to automatically discharge the tank. The interlayer cardboard of each layer of cans is drawn out by the suction cup. Depalletizing metal cans in layers. The equipment realizes intelligent operation management, which is simple and easy to master. It can greatly reduce labor and labor intensity. Designed with the concept of high speed, stability and space saving.
Product Gallery
Product Video
Technical Specifications
| Power Supply: | 380V×50 Hz×3/220V×50 Hz×2 |
|---|---|
| Air Source: | Working pressure is less than or equal to 6Kg/Cm2 |
| The Size Of The Pallet Used: | 1100Mm ×1400Mm (According to the size provided by the customer) |
| Maximum Removable Height: | 2300Mm |
| Body Size: | 5.1*2.2*3.5M |
| Weight: | 3200Kg |
Description
- 300 cans per minute. Suitable for 17-layer 5133 tank height.
- The main board has good integrity on the three sides, the main lifting frame support points are separated at the corners, and the vertical seams are small, which effectively prevents the tank from pinching in the seams or scratching the paint.
- The brake motor pushes the can and discharges the can, and implements the flexible can push to avoid the problem of clamping the can caused by the electric forcible pushing of the can.
