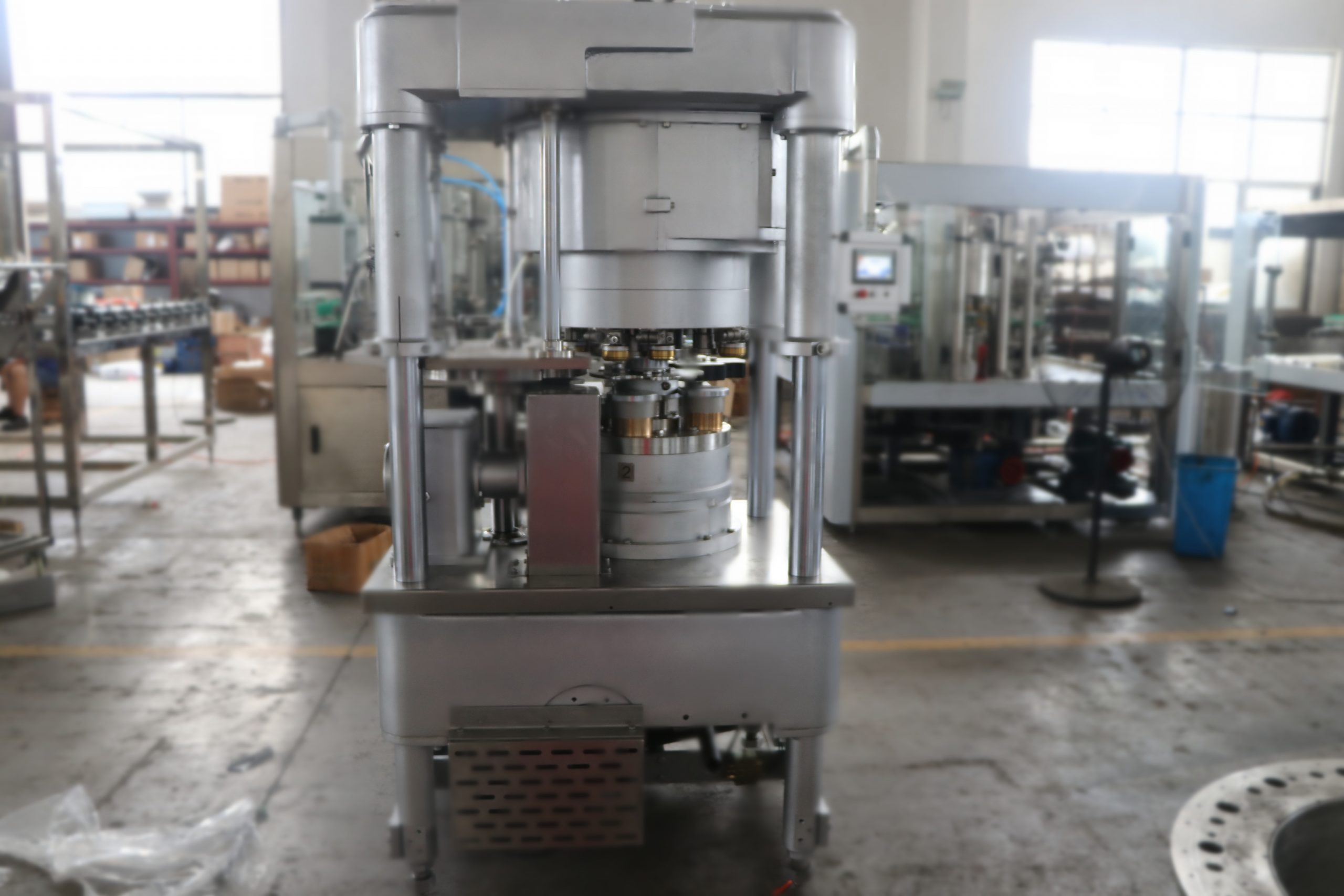

Automatic 6 Heads Can Seamer
This machine is currently an advanced can sealing machine. When the empty can enters the lifting tray via the dial, the empty can is lifted up and sealed, and the can is pushed out by the head of the capping mechanism after it is sealed, and then it enters the can-out transport. Mainly use Japan’s Mitsubishi PLC and proximity switches, South Korea’s vacuum sensors, solenoid valves, the entire production speed can be set on the touch screen as required.
Product Gallery
Product Video
Technical Specifications
| Product Name: | High-speed sealing machine |
|---|---|
| Model: | BWFGJ400 |
| Number Of Cans: | 5 |
| Production Capacity: | 60~400 Cans/Min |
| Applicable Tank Diameter: | Ф52.3~99 (105 for special specifications) |
| Applicable Tank Height: | 39~160Mm |
| Power: | 7.5Kw |
| Weight: | 2000Kg |
| Dimensions: | 1600X1200X1900Mm |
Description
- The overall structure of the new machine series is more reasonable and beautiful than the old machine.
- The diameter of the head of the new machine can sealer is significantly larger than the original one, and all heavy-duty bearings are installed. The life of the sealing cam is prolonged, and its normal service life is increased by more than 5 times.
- The sealing shaft of the new machine adopts a dual-shaft structure with the first roller and the second roller separate, so that the feed of the sealing wheel can be adjusted and controlled separately, and the quality of the sealing will not be affected by the machining error or wear of the cam.
- The direction of rotation of the new machine during sealing is counterclockwise, so that the direction of rotation of the can after the end of the can is automatically separated from the sealing machine, which can avoid jams and scratches on the can body.
