Automatic 4 cavity bottle blow molding machine
Automatic 4 cavity bottle blow molding machine is suitable for midium capacity PET/PP/PE bottle blow.

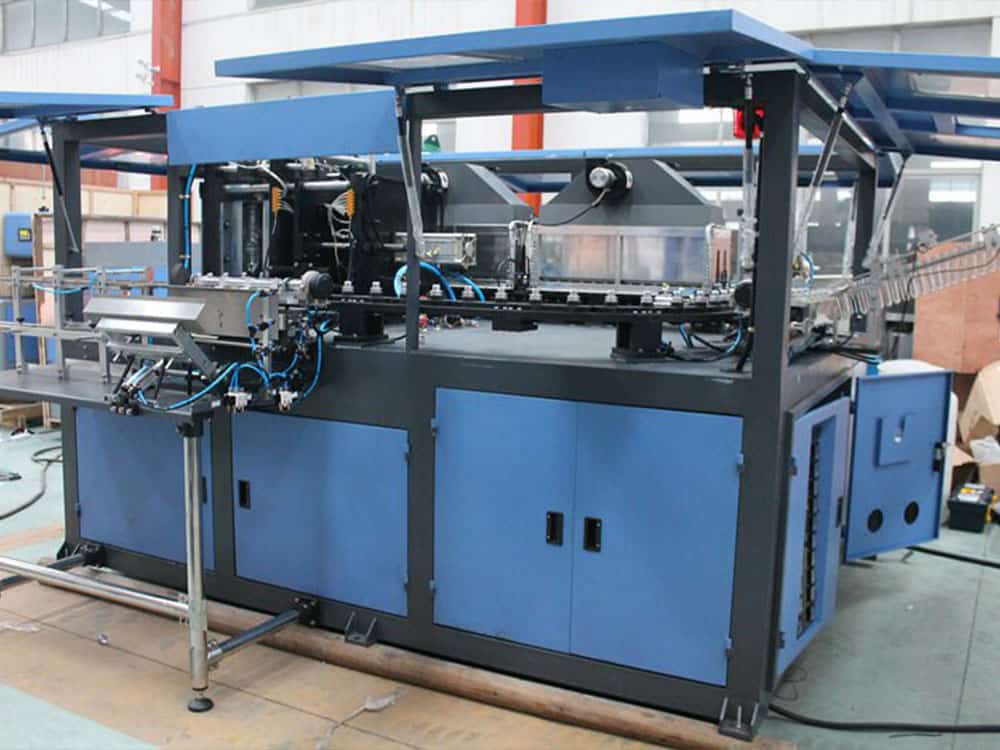

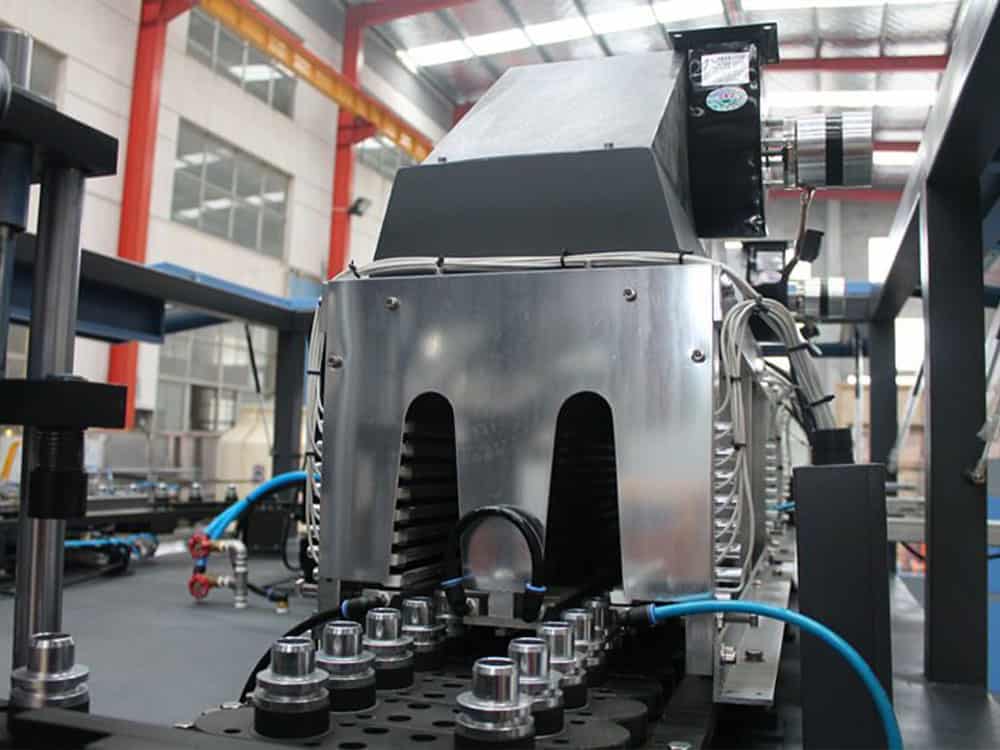

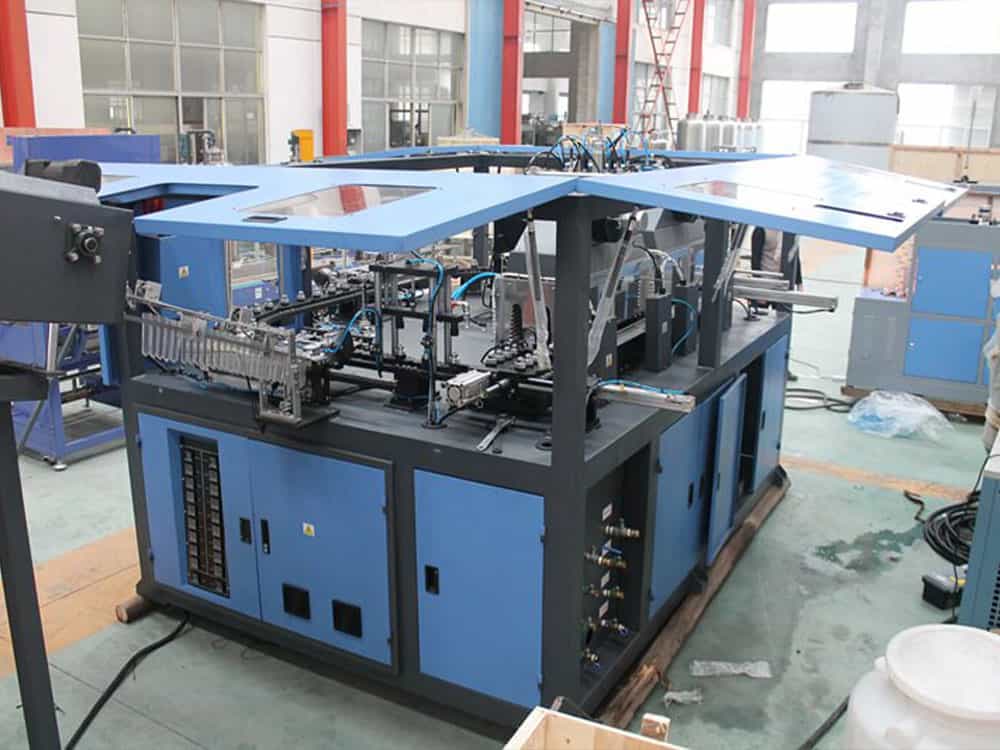

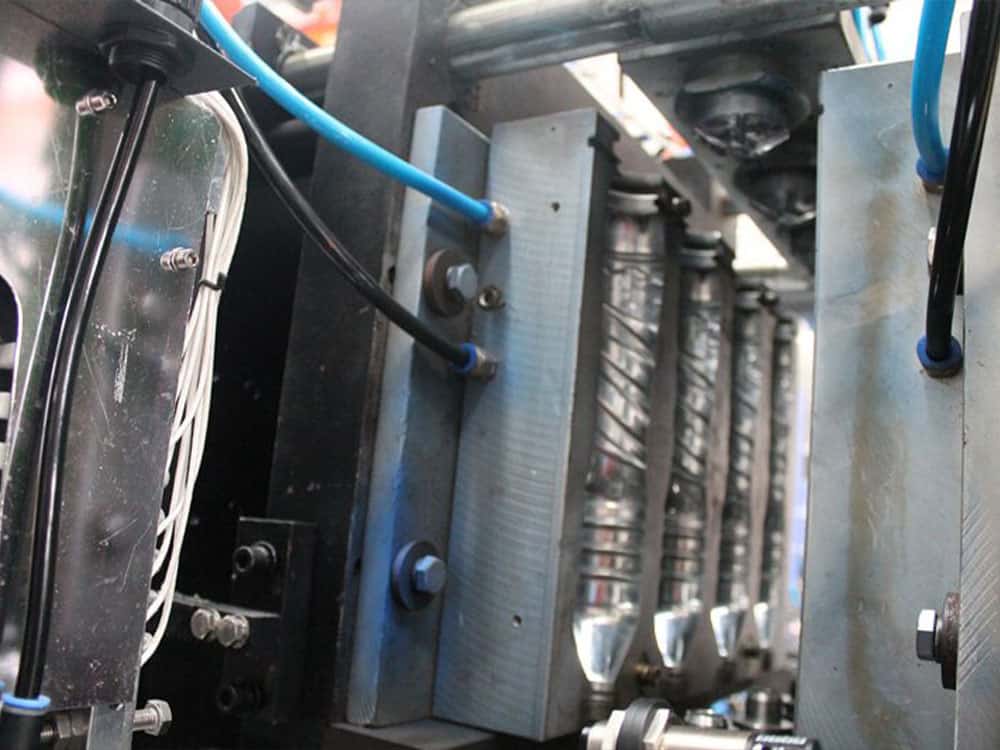

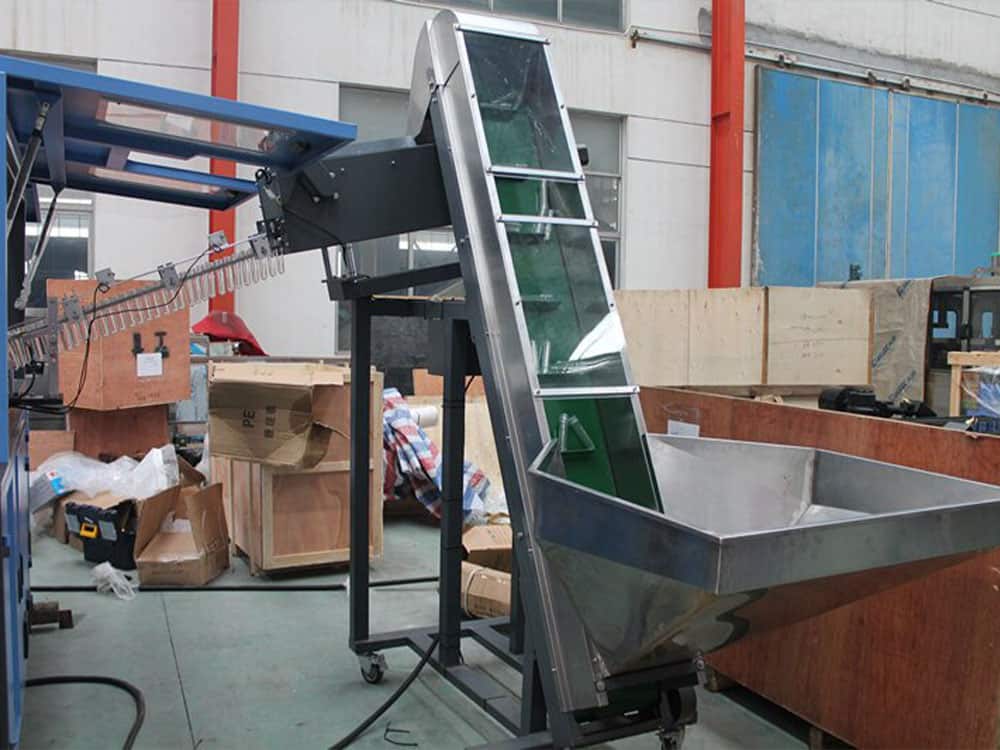

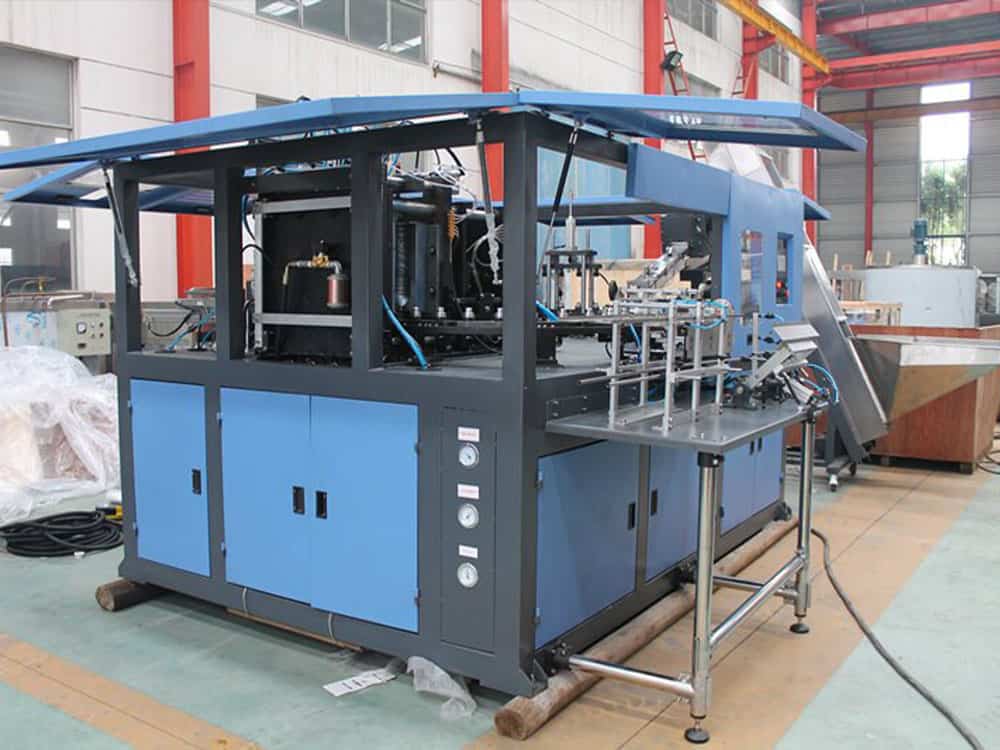

Product Gallery
Product Video
Technical Specifications
| Unit | DY-4000 | ||
| Molding | Clamping force | kg | 32000 |
| Clamping stroke | mm | 125 | |
| Stretching stroke | mm | 350 | |
| Bottom stroke | mm | 30-70 | |
| Cavity pitch | mm | 120 | |
| Number of cavity | pcs | 4 | |
| Container | Max. container volume | Ltr | 1.5 |
| Neck diameter range | mm | 18-38 | |
| Max. container diameter | mm | 115 | |
| Max. container height | mm | 320 | |
| Carriage unit | pcs | 116 | |
| Theoretical output | BPH | 4000 | |
| Electric system | Total power | kw | 54 |
| Heating power | kw | 20 | |
| Max. heating power | kw | 48 | |
| Air system | Operating pressure | Kg/cm2 | 7 |
| Low air consuming | Ltr/min | 1500 | |
| Blowing pressure | Kg/cm2 | 35 | |
| High air consuming | Ltr/min | 6000 | |
| Air dryer | Operation pressure | Kg/cm2 | 2-4 |
| Temperature | 10-12 | ||
| Consuming | Kcal/hr | 10000 | |
| Flow rate | Ltr/min | 60 | |
| Water chiller | Operation pressure | Kg/cm2 | 2-4 |
| Temperature | 30 | ||
| Consuming | Kcal/hr | 45000 | |
| Flow rate | Ltr/min | 150 | |
| Machine size | Dimension | Mm | 2450*2150*2200 |
| Weight | kg | 3600 | |
| Remarks | 1, All data standard indication for 0.6L bottle; 2, The actual output depends on the perform quality and bottle shape; 3, Specifications are subject to change without notice; 4, Please provide the stable ambient temperature; |
||
Description
Automatic 4 cavity bottle blow molding machine is used to blow PET/PP/PE bottles. We can supply both normal type bottle or with handles or heat-resistant bottle.
we can design the suitable bottle for your all needs.
