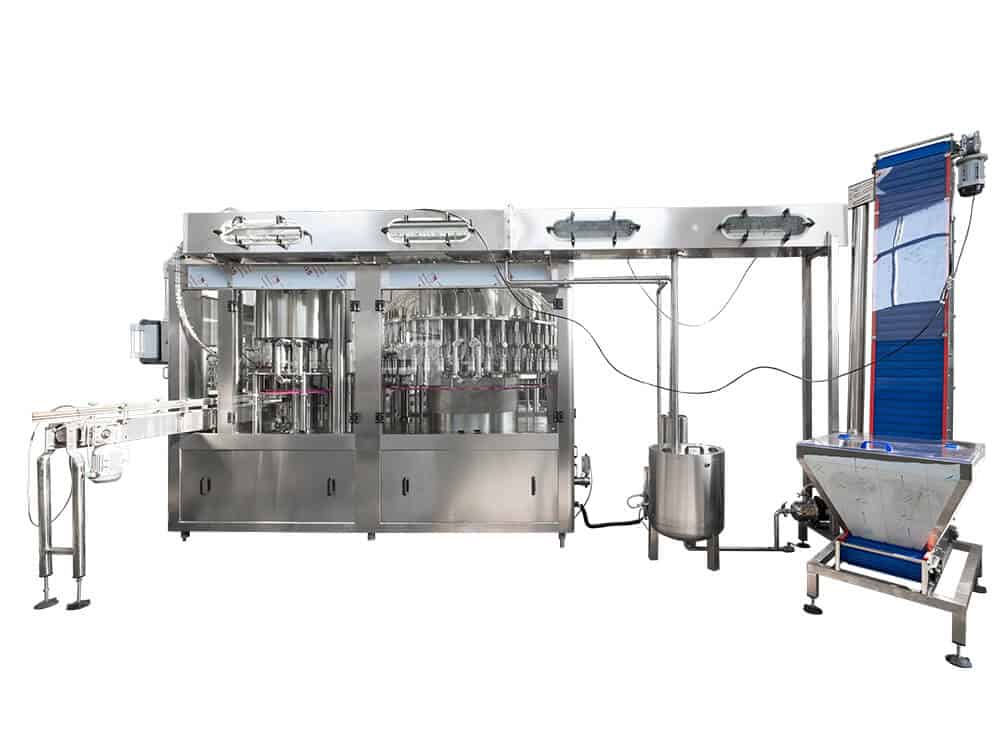

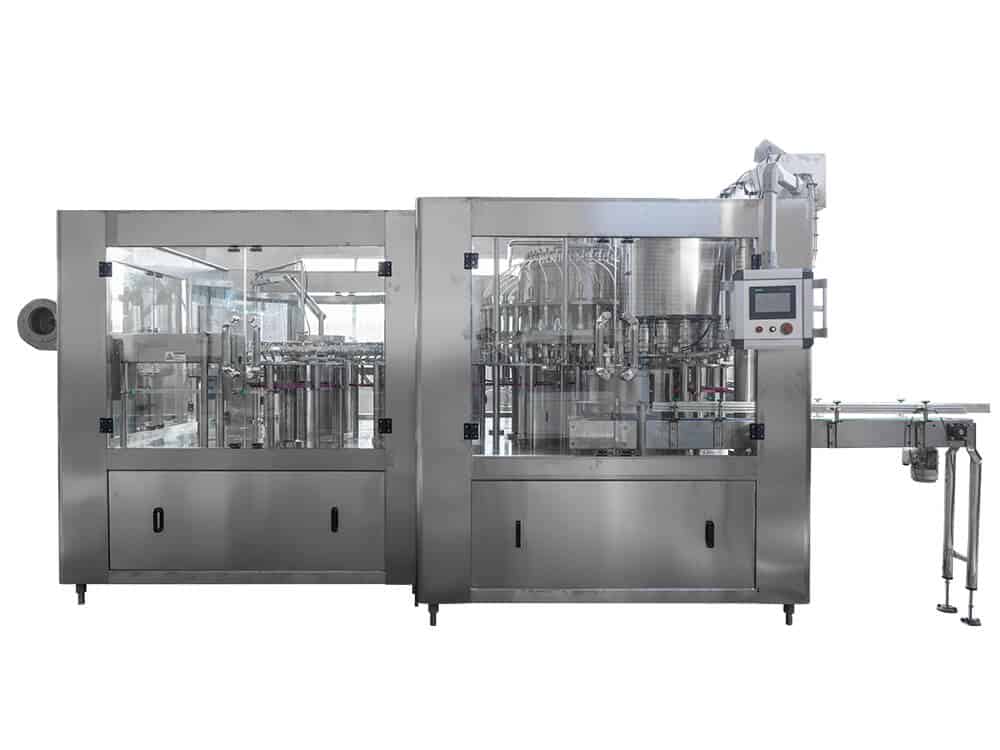

20000BPH High Speed Water Filling Bottling Machine
Our newly designed CGF serious monoblcok water filling machine is designed for plastic bottle filling, it can suit for PET bottle size between 150ml to 2000ml, can customzied to maximum of 3000ml. Genus design of capping design makes different screw cap change into one simple easy torch. On machine surface is only leaving 3 points of bearing support point which makes drainage so easy and without any dirt stain. A11 bearing have water proof sealing to protect it from getting rust.
Technical Specifications
| Model | CGF40-40-12 |
|---|---|
| Capacity (B/H) | 2000 ,0BPH (500ml ) |
| Suitable Bottle Size | 150- 2000ml |
| Water Pressure | 0.18-0.25Mpa |
| Water Consumption (kg/h) | 1500 |
| Washing Valves | 40 |
| Filling valves | 40 |
| Capping Heads | 12 |
| Filling Precision | <+5MM |
| Air Pressure | 0.5Mpa |
| Air Consumption | 0.3m3/min |
| Power (kw) | 7.5 |
| Weight (kg) | 5000 |
| Dimension (I*w*H) | 3200*2100*2100 rmm |
Description
- Electric saving
- Precise filling level
- 99.9% yield
- Easy changing for different design bottle
- Speed adjustable
